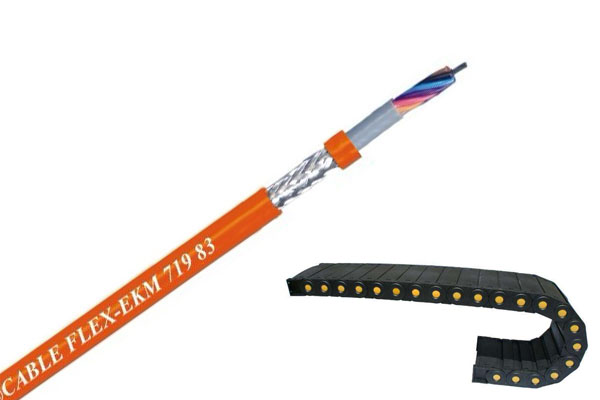

聚氨酯高速移动柔性双护套屏蔽拖链电缆

名称：聚氨酯高速移动柔性双护套屏蔽拖链电缆
铜材：高纯度0.1mm、0.08mm无氧铜丝(镀锡/不镀锡)
绝缘及护套：高速柔性特殊聚合型绝缘、亮面PUR(聚氨酯)、雾面PUR(聚氨酯)
内部结构：兼具柔性、高韧性、耐弯曲、性能、寿命、稳定性的自有技术设计结构方式

规格范围：芯数******可生产至100芯
芯线区分方式：颜色区分、打点区分、打号区分、指定区分方式。
屏蔽：镀锡无氧铜丝编织屏蔽

护套颜色：黑色、灰色、橙色、绿色

电压等级：300/300V、300/500V、450/750V
弯曲寿命：预设实验条件下＞2000万次
型号命名：EKM71983
应用：用于拖链系统或频繁移动场合的柔性耐弯曲电缆；细分低速移动安装型、中速移动型安装型、高速移动安装型，聚氨酯高速移动型。


规格列表 （芯数******可生产至100芯），支持定制

2*0.3mm²2*0.4mm²2*0.5mm²2*0.75mm²2*1.0mm²2*1.5mm²2*2.5mm²2*4.0mm²2*6.0mm²
3*0.3mm²3*0.4mm²3*0.5mm²3*0.75mm²3*1.0mm²3*1.5mm²3*2.5mm²3*4.0mm²3*6.0mm²
4*0.3mm²4*0.4mm²4*0.5mm²4*0.75mm²4*1.0mm²4*1.5mm²4*2.5mm²4*4.0mm²4*6.0mm²
5*0.3mm²5*0.4mm²5*0.5mm²5*0.75mm²5*1.0mm²5*1.5mm²5*2.5mm²5*4.0mm²5*6.0mm²
6*0.3mm²6*0.4mm²6*0.5mm²6*0.75mm²6*1.0mm²6*1.5mm²6*2.5mm²6*4.0mm²6*6.0mm²
7*0.3mm²7*0.4mm²7*0.5mm²7*0.75mm²7*1.0mm²7*1.5mm²7*2.5mm²7*4.0mm²7*6.0mm²
8*0.3mm²8*0.4mm²8*0.5mm²8*0.75mm²8*1.0mm²8*1.5mm²8*2.5mm²8*4.0mm²8*6.0mm²
9*0.3mm²9*0.4mm²9*0.5mm²9*0.75mm²9*1.0mm²9*1.5mm²9*2.5mm²9*4.0mm²9*6.0mm²
10*0.3mm²10*0.4mm²10*0.5mm²10*0.75mm²10*1.0mm²10*1.5mm²10*2.5mm²10*4.0mm²10*6.0mm²
11*0.3mm²11*0.4mm²11*0.5mm²11*0.75mm²11*1.0mm²11*1.5mm²11*2.5mm²11*4.0mm²11*6.0mm²
12*0.3mm²12*0.4mm²12*0.5mm²12*0.75mm²12*1.0mm²12*1.5mm²12*2.5mm²12*4.0mm²12*6.0mm²
13*0.3mm²13*0.4mm²13*0.5mm²13*0.75mm²13*1.0mm²13*1.5mm²13*2.5mm²13*4.0mm²13*6.0mm²
14*0.3mm²14*0.4mm²14*0.5mm²14*0.75mm²14*1.0mm²14*1.5mm²14*2.5mm²14*4.0mm²14*6.0mm²
15*0.3mm²15*0.4mm²15*0.5mm²15*0.75mm²15*1.0mm²15*1.5mm²15*2.5mm²15*4.0mm²15*6.0mm²
16*0.3mm²16*0.4mm²16*0.5mm²16*0.75mm²16*1.0mm²16*1.5mm²16*2.5mm²16*4.0mm²16*6.0mm²
17*0.3mm²17*0.4mm²17*0.5mm²17*0.75mm²17*1.0mm²17*1.5mm²17*2.5mm²17*4.0mm²17*6.0mm²
18*0.3mm²18*0.4mm²18*0.5mm²18*0.75mm²18*1.0mm²18*1.5mm²18*2.5mm²18*4.0mm²18*6.0mm²
19*0.3mm²19*0.4mm²19*0.5mm²19*0.75mm²19*1.0mm²19*1.5mm²19*2.5mm²19*4.0mm²19*6.0mm²
20*0.3mm²20*0.4mm²20*0.5mm²20*0.75mm²20*1.0mm²20*1.5mm²20*2.5mm²20*4.0mm²20*6.0mm²
21*0.3mm²21*0.4mm²21*0.5mm²21*0.75mm²21*1.0mm²21*1.5mm²21*2.5mm²21*4.0mm²21*6.0mm²
22*0.3mm²22*0.4mm²22*0.5mm²22*0.75mm²22*1.0mm²22*1.5mm²22*2.5mm²22*4.0mm²22*6.0mm²
23*0.3mm²23*0.4mm²23*0.5mm²23*0.75mm²23*1.0mm²23*1.5mm²23*2.5mm²23*4.0mm²23*6.0mm²
24*0.3mm²24*0.4mm²24*0.5mm²24*0.75mm²24*1.0mm²24*1.5mm²24*2.5mm²24*4.0mm²24*6.0mm²
25*0.3mm²25*0.4mm²25*0.5mm²25*0.75mm²25*1.0mm²25*1.5mm²25*2.5mm²25*4.0mm²25*6.0mm²
26*0.3mm²26*0.4mm²26*0.5mm²26*0.75mm²26*1.0mm²26*1.5mm²26*2.5mm²26*4.0mm²26*6.0mm²
27*0.3mm²27*0.4mm²27*0.5mm²27*0.75mm²27*1.0mm²27*1.5mm²27*2.5mm²27*4.0mm²27*6.0mm²
28*0.3mm²28*0.4mm²28*0.5mm²28*0.75mm²28*1.0mm²28*1.5mm²28*2.5mm²28*4.0mm²28*6.0mm²
29*0.3mm²29*0.4mm²29*0.5mm²29*0.75mm²29*1.0mm²29*1.5mm²29*2.5mm²29*4.0mm²29*6.0mm²
30*0.3mm²30*0.4mm²30*0.5mm²30*0.75mm²30*1.0mm²30*1.5mm²30*2.5mm²30*4.0mm²30*6.0mm²
31*0.3mm²31*0.4mm²31*0.5mm²31*0.75mm²31*1.0mm²31*1.5mm²31*2.5mm²31*4.0mm²31*6.0mm²
32*0.3mm²32*0.4mm²32*0.5mm²32*0.75mm²32*1.0mm²32*1.5mm²32*2.5mm²32*4.0mm²32*6.0mm²
33*0.3mm²33*0.4mm²33*0.5mm²33*0.75mm²33*1.0mm²33*1.5mm²33*2.5mm²33*4.0mm²33*6.0mm²
34*0.3mm²34*0.4mm²34*0.5mm²34*0.75mm²34*1.0mm²34*1.5mm²34*2.5mm²34*4.0mm²34*6.0mm²
35*0.3mm²35*0.4mm²35*0.5mm²35*0.75mm²35*1.0mm²35*1.5mm²35*2.5mm²35*4.0mm²35*6.0mm²
36*0.3mm²36*0.4mm²36*0.5mm²36*0.75mm²36*1.0mm²36*1.5mm²36*2.5mm²36*4.0mm²36*6.0mm²
37*0.3mm²37*0.4mm²37*0.5mm²37*0.75mm²37*1.0mm²37*1.5mm²37*2.5mm²37*4.0mm²37*6.0mm²
38*0.3mm²38*0.4mm²38*0.5mm²38*0.75mm²38*1.0mm²38*1.5mm²38*2.5mm²38*4.0mm²
