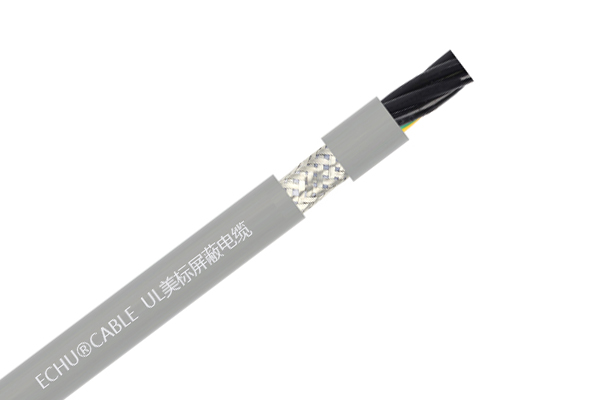

UL2517(P)美标屏蔽电缆

名称：UL2517(P)美标屏蔽电缆

铜材：高纯度无氧铜丝(镀锡/不镀锡)

绝缘及护套：环保无卤素SRPVC、环保无卤素聚氯乙烯

内部结构：兼具性能、寿命、稳定性

规格范围：芯数最大可生产至100芯

芯线区分方式：颜色区分、打点区分、打号区分、指定区分方式。
屏蔽：铝箔屏蔽、镀锡无氧铜丝编织屏蔽

护套颜色：黑色、灰色、白色、橙色、蓝色

温度电压：105℃、300V

执行标准：美标UL

规格列表 （芯数最大可生产至100芯），支持定制
2*26AWG2*24AWG2*22AWG2*20AWG2*18AWG2*16AWG
3*26AWG3*24AWG3*22AWG3*20AWG3*18AWG3*16AWG
4*26AWG4*24AWG4*22AWG4*20AWG4*18AWG4*16AWG
5*26AWG5*24AWG5*22AWG5*20AWG5*18AWG5*16AWG
6*26AWG6*24AWG6*22AWG6*20AWG6*18AWG6*16AWG
7*26AWG7*24AWG7*22AWG7*20AWG7*18AWG7*16AWG
8*26AWG8*24AWG8*22AWG8*20AWG8*18AWG8*16AWG
9*26AWG9*24AWG9*22AWG9*20AWG9*18AWG9*16AWG
10*26AWG10*24AWG10*22AWG10*20AWG10*18AWG10*16AWG
11*26AWG11*24AWG11*22AWG11*20AWG11*18AWG11*16AWG
12*26AWG12*24AWG12*22AWG12*20AWG12*18AWG12*16AWG
13*26AWG13*24AWG13*22AWG13*20AWG13*18AWG13*16AWG
14*26AWG14*24AWG14*22AWG14*20AWG14*18AWG14*16AWG
15*26AWG15*24AWG15*22AWG15*20AWG15*18AWG15*16AWG
16*26AWG16*24AWG16*22AWG16*20AWG16*18AWG16*16AWG
17*26AWG17*24AWG17*22AWG17*20AWG17*18AWG17*16AWG
18*26AWG18*24AWG18*22AWG18*20AWG18*18AWG18*16AWG
19*26AWG19*24AWG19*22AWG19*20AWG19*18AWG19*16AWG
20*26AWG20*24AWG20*22AWG20*20AWG20*18AWG20*16AWG
21*26AWG21*24AWG21*22AWG21*20AWG21*18AWG21*16AWG
22*26AWG22*24AWG22*22AWG22*20AWG22*18AWG22*16AWG
23*26AWG23*24AWG23*22AWG23*20AWG23*18AWG23*16AWG
24*26AWG24*24AWG24*22AWG24*20AWG24*18AWG24*16AWG
25*26AWG25*24AWG25*22AWG25*20AWG25*18AWG25*16AWG
26*26AWG26*24AWG26*22AWG26*20AWG26*18AWG26*16AWG
27*26AWG27*24AWG27*22AWG27*20AWG27*18AWG27*16AWG
28*26AWG28*24AWG28*22AWG28*20AWG28*18AWG28*16AWG
29*26AWG29*24AWG29*22AWG29*20AWG29*18AWG29*16AWG
30*26AWG30*24AWG30*22AWG30*20AWG30*18AWG30*16AWG
31*26AWG31*24AWG31*22AWG31*20AWG31*18AWG31*16AWG
32*26AWG32*24AWG32*22AWG32*20AWG32*18AWG32*16AWG
33*26AWG33*24AWG33*22AWG33*20AWG33*18AWG33*16AWG
34*26AWG34*24AWG34*22AWG34*20AWG34*18AWG34*16AWG
35*26AWG35*24AWG35*22AWG35*20AWG35*18AWG35*16AWG
36*26AWG36*24AWG36*22AWG36*20AWG36*18AWG36*16AWG
37*26AWG37*24AWG37*22AWG37*20AWG37*18AWG37*16AWG
38*26AWG38*24AWG38*22AWG38*20AWG38*18AWG38*16AWG
